CMX 50 U
The solution for 5-sided machining - from now on with direct measuring system and IoTconnector in standard
Max. X-axis stroke
20 in.
500 mm
Max. Y-axis stroke
18 in.
450 mm
Max. Z-axis stroke
16 in.
400 mm
Max. workpiece diameter
25 in.
630 mm
Max. workpiece height
22 in.
550 mm
Max. workpiece weight
441 lbs.
200 kg
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights

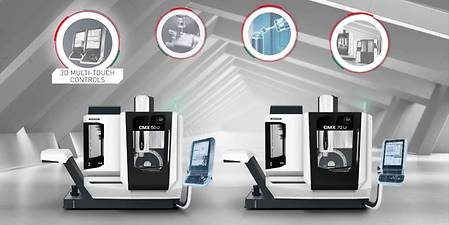

CMX U - Universal milling center
Patented swivel-rotary table with perfect accessibility - Your guaranteed benefit for complex manufacturing
- Complete machining of complex parts thanks to 5-axis technology
- Rigid table thanks to FEM-optimized design for machining of heavy parts
- Thermal compensation for highest quality production processes
Increase your efficiency and productivity with the CMX U series
- Highest precision thanks to direct measuring system in standard
- Rapid traverse 30 m/min in all linear axes to reduce non cutting time
- 30-pocket tool magazine in standard with quick tool change within 2.7 s
- Highly-dynamic In-Line spindle of 12,000 rpm with power 13 kW and 83 Nm (40% DC)
The best choice of 3D controls - with SIEMENS or HEIDENHAIN
- 19" DMG MORI SLIMline multi-touch control panel and SIEMENS for intuitive use and easy operation
- 19" DMG MORI SLIMline multi-touch control panel and HEIDENHAIN for easy and efficient programming
- DMG MORI SMARTkey: Personalized with 8 GB additional storage
NEW: inlineMASTER spindle
- 36 months warranty without hourly limitation!
- Improved cutting performance due to 53 % higher spindle power and 45 % higher torque with the 15.000 min−1 inlineMASTER (20 kW, 121 Nm with 40 % ED)
- BIG PLUS®-interface for longer tool life
NEW: IoTconnector for digitized and connected production processes
- DMG MORI NETservice and MESSENGER preinstalled
- Specially preconfigured for your machine prior to delivery
- Integrated firewall with automatic updates guarantees maximum protection
Application Examples
Automation
Open up the possibilities of automation
Increase productivity and quality, and operate 24/7. Our solutions offer extended machine uptime and support sustainability. Optimize your processes with our innovative automation solutions!

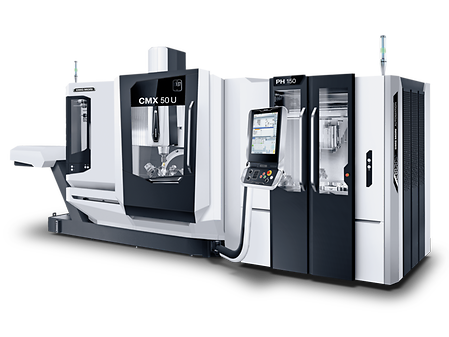

PH 150
Universal pallet handling from DMG MORI
- Control directly via the machine control system
- High variability of available configurations from 24 round pallets of ø 148 to four 500 × 500 mm pallets
- Up to 150 kg workpiece weight as standard (optionally expandable to 250 kg)
- Possibility to prioritize orders
- EROWA clamping system as standard, SCHUNK optional
- High clamping repeatability (< 0.002 mm for the chuck EROWA UPC-P)
- Optimal accessibility to the machine and automation

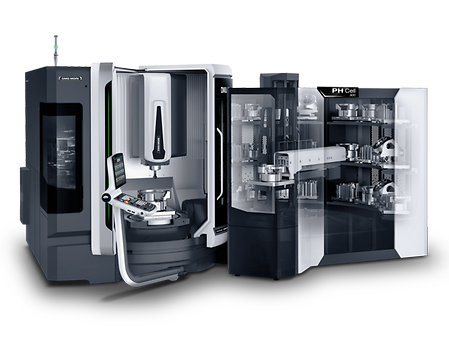

PH Cell 300
PH Cell 300 - Modular pallet handling for up to 40 pallets
- Modular automation concept with up to 40 storage locations in a 10.7 m2 footprint
- Handling of different pallet sizes in one system
- Up to 300 kg transfer weight (workpiece incl. pallet)
- Separate setup station for ergonomic and simultaneous loading and unloading of pallets
- Convenient and simple control of the automation directly via the machine control panel

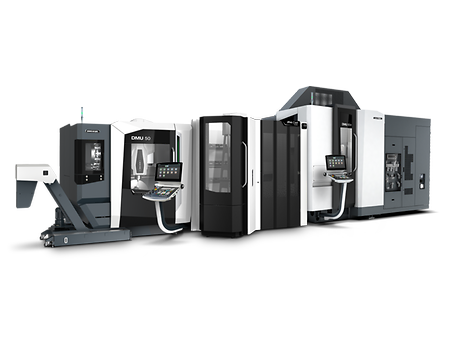

PH Cell Twin
PH Cell Twin - Modular pallet handling for 2 machines and up to 30 pallets
- One pallet handling device for 2 machines
- Up to 30 pallets on 12.9 m² due to double row pallet storage on each level
- Workpieces up to 500 x 500 x 500 mm
- Up to 300 kg transfer weight (workpiece incl. pallet)
- Retrofit of the second machine possible
- Attractively priced automation in DMG MORI VERTICO design
AMR 2000
Holistic automation on the shop floor
- Collaborative automation solution with free layout design
- Omnidirectional movement for minimal space requirements (turning radius 0m)
- Basis for additional tasks, e.g. B. tool handling, chip disposal, etc.
- Material transport from Euro pallets 1,200 x 800 mm
- Maximum transport weight of up to 2,000 kg
- Security based on Sick and Siemens technology
Highlights
AMR 2000 Material
- Autonomous transport of material pallets
- Transport of different load carriers
- Integration into DMG MORI automation systems for workpiece handling – exchange of finished part and raw part pallets
- Integration into existing processes
- Scalable and expandable at a later date
AMR 2000 chips
- Autonomous transport of chip containers
- Automatic transport order from the master computer
- Extended autonomy of the machine tool
- Material and chip transport can be combined
AMR 2000 tool handling
- Tool identification in the standard
- Autonomous transport and exchange of tools between machines and tool storage systems
- Max. tool dimensions ø 280 / 400 mm
- Max. tool weight 30 kg
- Transport weight 720 kg (24× 30 kg)
- Maximum number of tools: 24 pcs

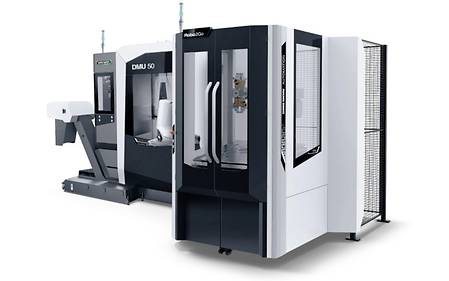

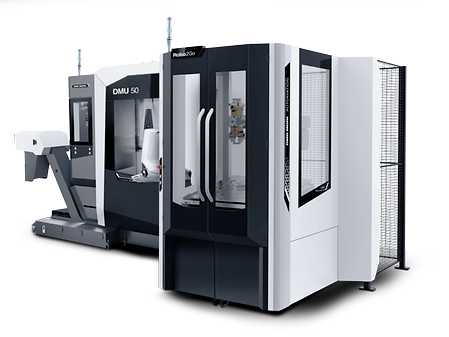

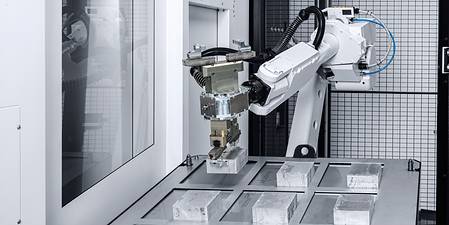

Robo2Go Milling 3rd Generation

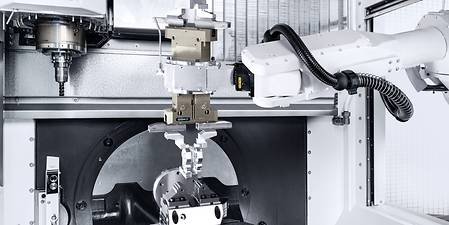

Flexible workpiece handling for small to medium batch sizes

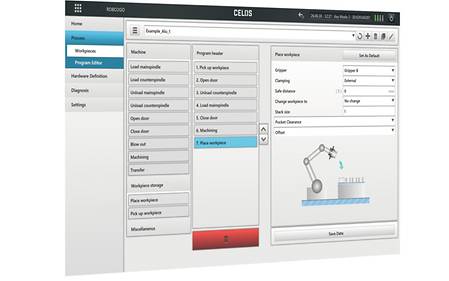

- One app for uniform control of all Robo2Go variants, setting up a new workpiece < 5 minutes
- Robo2Go Milling, robot payload 25, 35 or 70 kg
- Best-in-class layouts with right setup variant

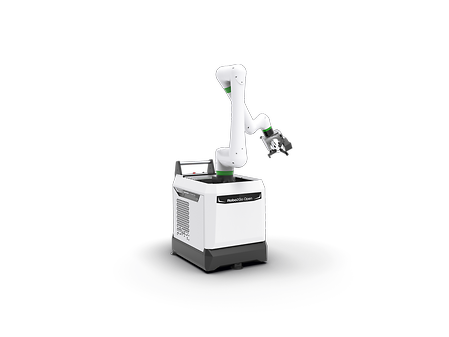

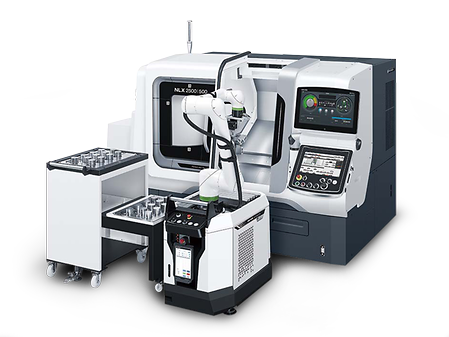

Robo2Go Open
Highly flexible and collaborative automation for workpieces up to 10 kg
- Freely movable workpiece handling, incl. robot and storage area on a trolley
- Workpieces up to 10 kg, or 5 kg x 2 with double gripper
- No infrastructure changes
- No safety fence necessary
- 600 × 900 mm footprint
- Collaborative robots, setup time <5 minutes*
- Direct teaching without robot knowledge
- Easy connection via Ethernet
- Two types of workpiece stockers can be selected
- Storage for up to 64 workpieces
- Blow-off device
- Regrip station
*When the optional tag position correction function is selected or when the machine / workpiece setup is already completed.

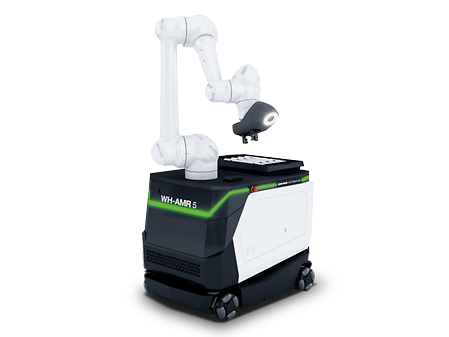

WH-AMR
Workpiece automation with maximum flexibility thanks to flexible layout design
- Modular concept with flexible layout design
- Driverless transport systems without guide rails or tracks
- Collaborative: human and machine in one system
- Vision sensor enables robot arm positioning accuracy better than ± 1 mm
- Workpieces up to ø 150 × 120 mm and 10 kg
- Compact design (700 × 1,035 mm)
- Laser sensor
- Excellent operational performance and stability, including on an uneven floor
PH-AMR
Pallet automation with maximum flexibility through free layout design
- Modular concept with flexible layout design
- Driverless transport systems without guide rails or tracks
- Collaborative: Man and machine in one system
- Navigation through natural navigation
- Pallet sizes from 500 × 500 mm to 1,600 × 1,250 mm
- Workpieces up to 5,000 kg and ø 1,600 mm
Highlights
Free accessibility
- Best visibility into the workspace at any time
- Manual or crane loading still possible
- Collaborative system – man and machine in one system
Modular concept with free layout design
- No safety housing for the automation system necessary
- Free positioning possibility of the individual modules
- Subsequent integration into existing production
Simple expansion of automation system
- Additional shelf modules to increase the number of storage places
- Additional AMRs can be integrated in the system
- Machines with an automation interface can be integrated very quickly afterwards
Minimum space requirement
- Free pallet handling system without fixed installation requirements on hall floor
- AMR paths remain walkable and passable
- Laser scanners guarantee personal protection in driving direction
- Omnidirectional movement for minimum space requirements (turning circle 0m)
- Flexible automation concept - Automation of different machine types with one system
Control & Software
Experience the speed of digital transformation (DX)
Revolutionize your operations, unlock new opportunities, increase efficiency and promote sustainability by reducing power consumption – while gaining a strong competitive advantage.
HEIDENHAIN TNC 620
- Simple programming in HEIDENHAIN conversational programming or according to DIN/ISO
- Extensive machining and touch probe cycles
- Dynamic collision monitoring and realistic 3D simulation for greater safety
- HEROS operating system based on Linux for maximum IT security
SIEMENS SINUMERIK 840d solutionline Operate
- Shopmill Workshop-orientated programming
- Advanced Surface and Top Surface: best workpiece surfaces with minimum processing time
- Extensive machining cycles
MPC 2.0 – Machine Protection Control
- Vibration monitoring in the process
- Rapid shutdown in case of a crash
- Manual retraction even in swiveled machining plane
- NEW: Torque monitoring
- New: Recommended with Protection Package for CTX TC machines
Highlights
Customer Benefits
MPC Graph: current and learned process values. / MPC Diagnostics: stock condition, number of impact and crash.
- Avoiding tool breakage
- Increase in machine availability
- Damage reduction
Excentric turning and milling
- Superposition of the turning movement by additional X- and Y-traverses
- Applicable for turning and milling
Highlights
Customer Benefits
- Eccentric geometries easy to manufacture
- Exact axis coupling and synchronization in the background
Left : Enter the parameters for the position of the external workpiece area. / Right : Graphical representation of the position within the workpiece.
DMG MORI gearMILL
- Productive complete processing
- Cost-effective gear cutting on standard machine with standard tools
- Flexible for different gear geometries
- Quality inspection in the process
Highlights
Customer Benefits
- Program creation based on blank drawings and gear data
- Optimization of workpiece orientation e.g. after heat treatment
- Interface for coordinate measuring device (Klingenberg, Leitz, Zeiss)
Left : Input of the gear parameters for the geometry calculation of a spur gear. / Right : Grafische Betrachtung des Abwälzverfahrens.
3D quickSET
Turning
- Measurement and correction of the position of turning and Pivot axes (C4, C3, B)
- Sag compensation possible
- Can be used in combination with standard probes from customers (recommended Renishaw, Blum)
Milling
- Toolkit for checking and correcting the kinematic accuracy of 4- and 5-axis machine configuration
- All head variations and table axes
Highlights
Turning Customer Benefits
- Reliable re-calibration of the machine before a highly precise processing
- Continuous documentation of machine accuracy
- No rejected parts due to unknown Geometric-deviations
Dialogue-guided measurement of the B- and C-axis.
Milling Customer Benefits
- Periodic recalibration of the machine with comprehensive documentation
- Highest kinematic accuracy in self-regulation
Define kinematics head
Service & Training
Comprehensive carefree service and training for your production
Take advantage of our full-service offering and hands-on training to maximize machine performance and minimize downtime. With comprehensive maintenance packages, original spare parts and tailored training programs, we can take your production and your team to the next level.
Downloads & Technical Data
Workpiece
Max. workpiece diameter
25 in.
630 mm
Max. workpiece height
22 in.
550 mm
Max. workpiece weight
441 lbs.
200 kg
Work Area
Max. X-axis stroke
20 in.
500 mm
Max. Y-axis stroke
18 in.
450 mm
Max. Z-axis stroke
16 in.
400 mm
