DMU 105 (FD) monoBLOCK
The monoBLOCK series has a machine concept for every sector
Max. X-axis stroke
1,135 mm
Max. Y-axis stroke
1,050 mm
Max. Z-axis stroke
750 mm
Max. workpiece diameter
1,240 mm
Max. workpiece height
690 mm
Max. workpiece weight
2,000 kg
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Ergonomic
- Large door opening of 1,650 and unique access to the working area, most compact machine with a footprint of just 18 m²
- Unrestricted crane loading of up to 2,000 kg
- Quick and easy to set up thanks to it´s three-point support
Precise
- Comprehensive cooling measures, high-performance coolant unit and multi-sensor compensation as standard
- From 5 µm positioning accuracy in standard
- Stiff construction with high static masses and balanced moving parts
Versatile
Several table solutions from the 5 axes machining with up to 2,000 kg or complete machining with milling and turning with up to 4,000 Nm
Widest spindle range on the market with up to 30,000 rpm or with up to 430 Nm
- Machineintegrated tool magazines with up to 180 pockets
Stiff monoBLOCK concept
- monoBLOCK – Maximum stability from one casting
- One-piece column with large, stable slideways, 55 mm roller guideways in all axes
- Maximum stability thanks to large ball screws in all axes ø 50 / 63 / 50
- FEM optimisation of all components
- Clamping of the swivelling rotary table
monoBLOCK Excellence Factory
Application Examples
Control & Software

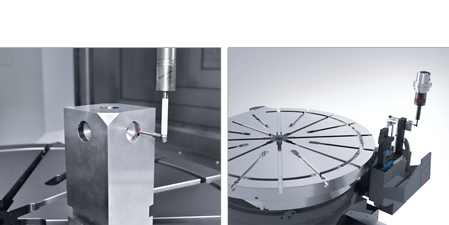

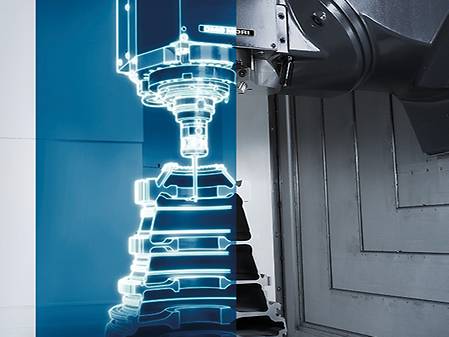

L-Measuring probe packet
- Measurement of webs and grooves on components
- Measurement of diameter in difficult to access places
- Available with manual and retractable Calibration unit Package content
- L-Measuring probe according to Customer-specific design
Highlights
Customer Benefits
- Flexible application possibilities
- In process measurement
Left : Semi-automatic Measurement solution. / Right : Automatic measurement solution.

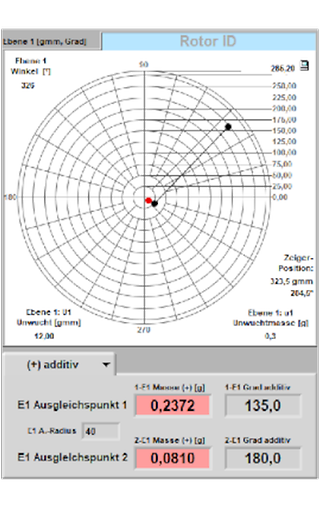

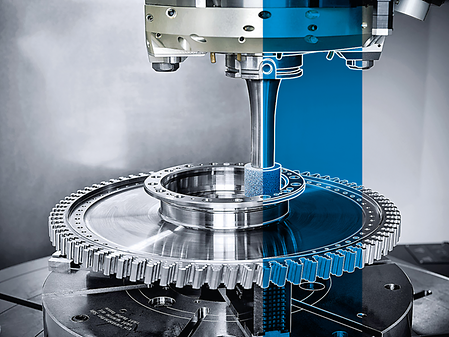

In-Machine Tool Balancing
- Balancing of tools in the machine for high surface requirements and machine protection
- Checking the balancing quality of the spindle
- Balancing quality up to 0.3 g/mm
Highlights
Customer benefits
User Interface
- Better surfaces due to balancing of the entire system in the clamped state
- Balancing of the tool under machining conditions (machining position -vertical / horizontal, with / without internal cooling supply, speed)
- Economical, as no external balancing device is required
User Interface
VCS Complete
- Geometric fingerprint of the machine Volumetric calibration at the touch of a button
- Detection and compensation of geometrical, positioning and angular errors of all axes
- Easy handling and implementation by the customer directly at the machine
Highlights
Customer Benefits
- Regular compensation of the machine geometry over the entire life cycle of the machine
- Dialogue-led operation for easy and fast handling
- Data recording for further analysis
Possible accuracy deviation without VCS-Complete.
Maintenance Package i4.0
- Automatic recognition of tool pull-in force for consistently high process stability.
- Predefined cycle for automatic lubrication, every 75h or after 20,000 tool changes.
- Detection of leakage and measuring of usage of pneumatics system.
Highlights
Customer Benefits
- Efficient and timesaving lubrication without operator intervention
- High transparency by displaying the lubrication cycles and the current pull-in force.
- Data recording in combination with the optionally available Condition Analyzer for additional analyzes of air consumption and changes of the pull-in force
Detection of leakage and measuring of usage of pneumatics system.
Simple query of the monitoring parameters and the current pull-in force.
Tilted Measuring Cycle
- Measuring with tilted tool axis
- Dialog-guided programming of the measuring cycles
- Positioning of the measuring points with rotary axis
Highlights
Customer Benefits
- Increase in component accuracy
- Reduction of set-up time
- Collision-free measuring thanks to tilted tool axis possible
- Further processing of the measurement results
Left : 1. circumferential measurement, 2. alignment surface, 3. alignment hole / Right : Dialog-guided programming
angularTOOL
- Highest flexibility in the machining of structural components due to variable alignment of the angle head
- Automatic CAD / CAM programming
- Automatic calculation of the TCP and combination with existing control functions
Highlights
Customer Benefits
- Machining of inaccessible positions on the workpiece.
- Savings in non-productive time due to fewer tool changes
- High cost savings due to the use of fewer tools
Left : Tool driven by KSS during drilling operation / Right : Parameter mask for variable angle setting

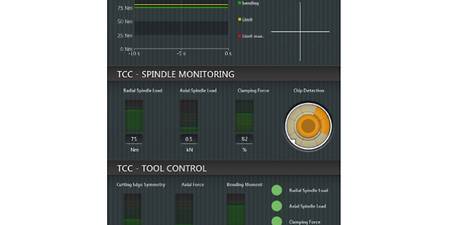

TCC – Tool Control Center
- Chip detection on plan pad and tool cone
- Monitoring of pull-in force
- Cutting edge control in process by symmetry monitoring of the bending moment per cutting edge
- Visualization of the bending moment over time via Graph
Highlights
Customer Benefits
- Tool and workpiece protection
- Optimized tool process
- Monitoring of the radial and axial spindle load depending on the actual pull-in force

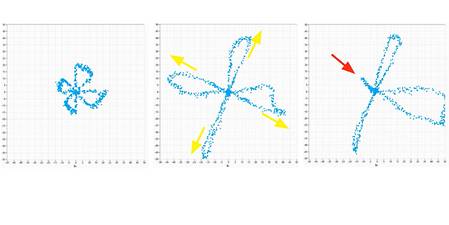

Left: NEW; Middle: Wear; Right: Cutting edge break

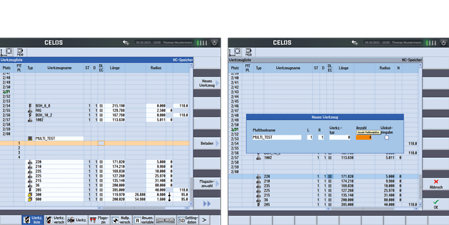

Multitool
- Efficient use of multi-tip turning tools with more than one cutting edge on turn & mill
- Several "sister tools" on one main tool holder
Highlights
Customer Benefits
- Reduction of tool change times
- Saves tool magazine space
Excentric turning and milling
- Superposition of the turning movement by additional X- and Y-traverses
- Applicable for turning and milling
Highlights
Customer Benefits
- Eccentric geometries easy to manufacture
- Exact axis coupling and synchronization in the background
Left : Enter the parameters for the position of the external workpiece area. / Right : Graphical representation of the position within the workpiece.

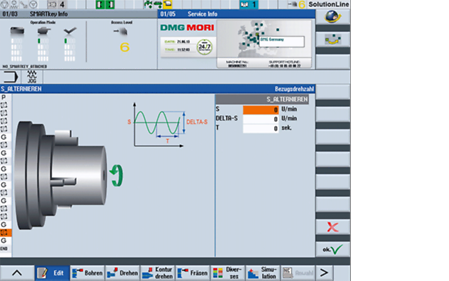

Alternating speed
- Easy to operate through three parameters and without additional sensors
- Avoiding vibrations by means adaptation of the speed
- Application for the main spindle and counter spindle, or for milling machines with FD tables with Direct Drive
Highlights
Customer Benefits
Input of parameters for speed set-point, differential speed and revolution frequency
- No manual intervention by the operator
- Identical repeatability for all components
- Increased process safety for special applications by avoiding vibrations. example, When using long thin drills or for milling parts with critical clamping

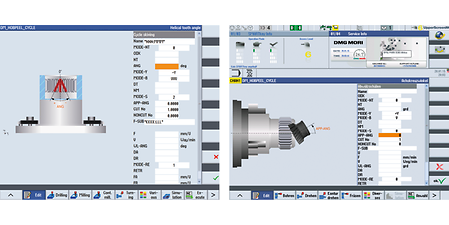

gearSKIVING 2.0
- Straight and helical external or internal spur gears and splines
- Arrow teeth with tooth offset Turn-mill machines
- Ball-shaped toothing by mathematical transformation of the 6th virtual axis
Highlights
Customer Benefits
- Internal toothing without angular head possible
- Short processing times, 10 x faster than shaping
- Synchronization and tool path controlled by the Cycle
Left : Inside gear profile machining. / Right : Outside gear profile machining.
MPC 2.0 – Machine Protection Control
- Vibration monitoring in the process
- Rapid shutdown in case of a crash
- Manual retraction even in swiveled machining plane
- NEW: Torque monitoring
- New: Recommended with Protection Package for CTX TC machines
Highlights
Customer Benefits
MPC Graph: current and learned process values. / MPC Diagnostics: stock condition, number of impact and crash.
- Avoiding tool breakage
- Increase in machine availability
- Damage reduction
Application Tuning Cycle
- Process-oriented adjustment of the feed rate n relation to the table loading
- Minimization of machining time with maximization of the component quality
- NEW: Now also available for CTX TC. Ideal machining result with the highest machine dynamics*
*without consideration of feed weight
Highlights
Customer Benefits
- User friendly setting of the machine dynamics with included DMG MORI knowhow
- Time saving in roughing
- High surface finish during finishing
Left : ATC 2.0 – Milling: Consideration of table loading. / Right : ATC – Turning: for CTX TC for easy adjustment of the machine dynamics.
3D quickSET
Turning
- Measurement and correction of the position of turning and Pivot axes (C4, C3, B)
- Sag compensation possible
- Can be used in combination with standard probes from customers (recommended Renishaw, Blum)
Milling
- Toolkit for checking and correcting the kinematic accuracy of 4- and 5-axis machine configuration
- All head variations and table axes
Highlights
Turning Customer Benefits
- Reliable re-calibration of the machine before a highly precise processing
- Continuous documentation of machine accuracy
- No rejected parts due to unknown Geometric-deviations
Dialogue-guided measurement of the B- and C-axis.
Milling Customer Benefits
- Periodic recalibration of the machine with comprehensive documentation
- Highest kinematic accuracy in self-regulation
Define kinematics head
Grinding
Turning
- Turning, milling and grinding in one clamping
- Grinding cycles for internal, external and face grinding as well as dressing cyclesn
- Body-borne sound sensors for start-up and dressing
- Full integration of measurement module for relative and absolute LIVE-Measuring – parallel to main time
Milling
- Better surface quality through integration of the grinding technology
- Grinding cycles for internal, external and face grinding as well as dressing cycles
- Body-borne sound sensors for start-up and dressingn
- 1,300 l Cooling system with integrated centrifugal filter for The filtration of particles > 10 μ
- AKZ nozzle unit optionally available for best possible Flushing of the grinding gap
Highlights
Turning Customer Benefits
- Expansion of the technological limits of the CTX TC
- Surface accuracy < 0.4 μm
- Roundness < 5 μm
- Quality IT5 for ø > 30 mm
Left : External, internal and circular grinding. Grinding with straight / angle or cup disc. / Right : Dressing straight, angled or cup discs simply visualized.
Milling Customer Benefits
- Surface accuracy < 0.4 μ
- Roundness < 5 μ
- Quality 5 for ø < 120 mm
- Quality 4 for ø > 120 mm
Left: Spiral plane grinding or osscillating plane grinding. / Right: Longitudinal grinding.
Interpolation turning 2.0 – turning recessing cycle
- With interpolation turning, the tool cutter follows a circular movement, where the cutter is always oriented towards the center Of the circle.
- Possible for external and internal machining
- Synchronization and tool path controlled by the cycle
- NEW: in version 2.0 complex turning contours are possible (currently only available on the DMU 50, other machine types will follow)
Highlights
Customer benefits
- Easy manufacturing of sealing surfaces where milling operation might not be possible.
- Complete component processing in one clamping possible
- Reduced investment costs for tools
Efficient Production Package
- Solutions for a safe process and for the efficient use of important machining steps
- Applications: cone cleaning, tool data monitoring, safe withdrawal movement, tapping, deep hole drilling, external thread and spigot milling, internal thread and circular milling, reverse countersink cycle
- 12 stored machining strategies for stock removal, deep hole drilling, Pocket milling machines*
Highlights
Customer Benefits
- Runtime optimization according to individual application
- Safe retraction after program break
- Tool data monitoring
Left : Input mask for universal cycle pocket milling. / Right : Input mask for tapping cycle
Service & Training
Downloads & Technical Data
Workpiece
Max. workpiece diameter
1,240 mm
Max. workpiece height
690 mm
Max. workpiece weight
2,000 kg
Work Area
Max. X-axis stroke
1,135 mm
Max. Y-axis stroke
1,050 mm
Max. Z-axis stroke
750 mm
